Packaging Inspection Solutions

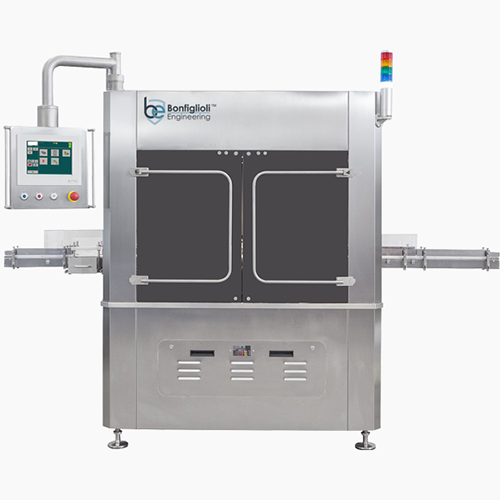

LVA 600

| PRODUCT MANUFACTURER: BONFIGLIOLI ENGINEERING

Product Description

The LVA 600 is an automated in-line headspace gas analyzer designed for non-destructive inspection of sterile pharmaceutical containers. Using Tunable Diode Laser Absorption Spectroscopy (TDLAS), it accurately measures oxygen, moisture, carbon dioxide, and absolute pressure levels inside containers such as vials, ampoules, cartridges, and pre-filled syringes. Capable of inspecting up to 600 units per minute, the LVA 600 handles a wide range of container types and sizes, from 1 to 100 ml in volume and 14 to 54 mm in diameter. It is suitable for liquid, lyophilized, and powder products. Fully compliant with EU GMP Annex 1, USP <1207>, and FDA 21 CFR Part 11, the system delivers fast, repeatable results without the need for nitrogen purging or reference containers. It features a user-friendly HMI interface with real-time data visualization and offers seamless integration with MES systems and remote access via VPN, ensuring advanced quality control and full traceability in pharmaceutical production.

Main Features and Benefits

  • Nitrogen purging not required

  • No reference container required during operation

  • Easily upgradeable

  • High Versatility to achieve customizable solutions

  • Automatic container rotation ensures highly accurate test results

  • Extreme stability and accuracy even with limited headspace

  • CFR part 11 compliance and 4.0 full integration

  • Can be fitted with multiple laser heads depending upon production-line speeds

  • Fast, reliable and repeatable results

  • HMI real-time display of statistics and raw data

  • Maximum accessibility of electrical and mechanical component for easy maintenance

  • Connections to Active Directory and VPN router for machine remote access

  • Computer-based automated measurement system: data acquisition, processing, and decision making.

  • Validation package guarantees complete and efficient regulatory compliance

  • Full batch control testing: fast, reliable and repeatable

  • MES (Manufacturing Execution System connection) allows remote machine data exchange & download

Request further information on this product

    Additional Product Model Imagery
